10MHz 130MHz RF Shielded Windows

RF Shielded Windows with Attenuation 10MHz-130MHz MRI Room Faraday Cage

Quick Detail:

a. 0.9m x 1.2m size RF Shielded Window

b. MRI RF Window

c. Alloy or Wooden Frame door for MRI Room

d. 10MHz~130MHz meet 110dB shielding performance

e. Wooden case packing door

f. Double layer hollow glass for well sound-insulating effect

g. Thickness 5mm + 8mm (±0.2mm)

Description:

1). MRI window is the main part in MRI room, to view the inside of MRI room from control room.

2) MRI window is made of none magnetic material frame and easily installed

3) 2 glasses, 5mm thickness per glass

4) Wire mesh: 60mesh/inch

Modular MRI room Product Features:

· Pure, electrically deposited 99.9% copper

· RF attenuation levels of > 100 dB up to 1GHz frequencies

· Free standing, structurally isolated RF walls

· Factory engineered and fabricated RF shield panels

· Contractor friendly interiors

​Specification:

Modular MRI room Description:

This modular frame construction is wrapped with electroplated copper which can conform to any design criteria. The engineered and bolted system enhances RF integrity with wide 4.4 cm (1 3/4") seams that are highly compressed, offering a seamless shield surface. Interior fasteners do not have to penetrate the shield surface by design, which enhances the long-term life of the shield.

Application:

1) Nuclear magnetic resonance(NMR)

2) Shielding room

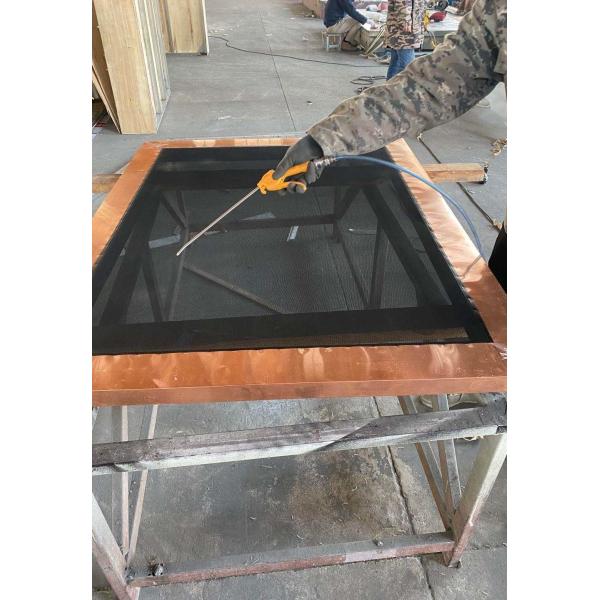

RF Shielded Windows Picture:

We can offer wooden frame and Al alloy frame MRI RF Shielded window product

FAQ:

Q. What is the Door delivery time?

A: After 10-12 working days after receiving your full payment.

Q. What is the packing?

A: In piece and in wooden case

Q. What is the door size?

A: We can offer customized size, and in usual 1.2m x 0.9m size is our hot-sale size

Q. What is the window advantage compared with other suppliers?

10MHz RF Shielded Windows

130MHz RF Shielded Windows

Faraday Cage radiation protection window

10MHz 130MHz RF Shielded Windows Images
